MAX235H155 Tough IP67 Rated Case

MAX235H155

Max cases are IP67 certified, tough, durable and reliable. They may be used in a variety of applications, ranging from marine, photography, scuba diving, hunting, fishing, special corps and even the manufacturing industry. These cases offer superior protection from the elements, water, dust and impacts, making them suitable for a wide array of sectors and applications.

Interior Options

This case is available empty or with the following foam configurations:

MAX235H155S

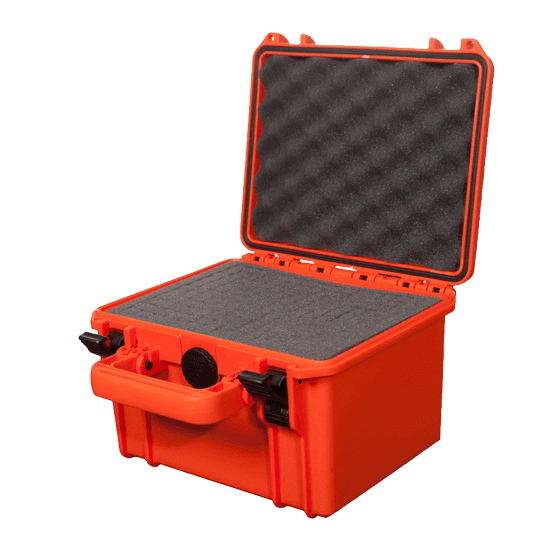

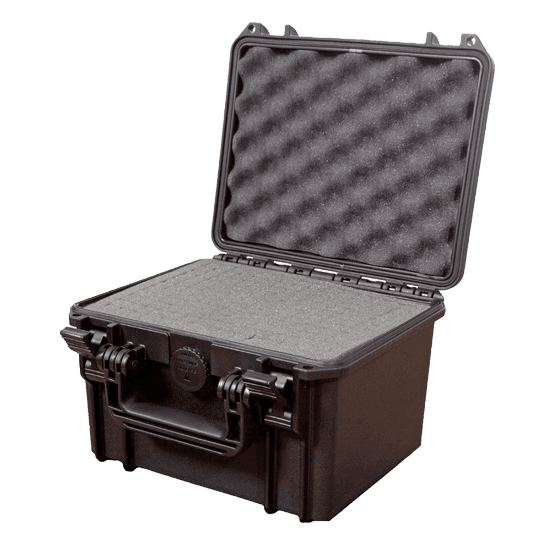

Pick and pluck foams in the bottom and convoluted foam in the lid available as standard. Base Foam provided in layers of 1x 30mm Base Foam & 2x 50mm cubed layers. Custom foam available upon request. Internal : W 235mm x D 180mm x H 156mm Features:

• IP67 Rated
• STANAG 4280
• DEF-STAN 81-41
• ATA300

Download Spec Sheet

• Internal -235 x 180 x 156 mm
• External -258 x 243 x 168 mm
• Lid/Base Split -131 25 mm
• Colour -Black,Orange
• Temperature Rating --30 / 90?C (-22 / 194?F)'
• Features -MIL-STD-810G,ATA300,DEF-STAN 81-41,IP67,STANAG 4280
• Interior -Empty,Pick and Pluck Foam
• Product Brand -MAX Cases
• Internal Depth (mm) -180
• Internal Depth (Range) -101-200
• Internal Height (mm) -156
• Internal Height (Range) -101-200
• Internal Width (mm) -235
• Internal Width (Range) -201-300
• Weight -0.96kg

Internal dimensions of MAX235H155 Tough IP67 Rated Case

Please note: The illustration above is for measurements only and should not be used as a visual guide to overall internal shape.
